Industrial Flooring, Acid Proof Tiles & Hygienic Wall Systems

In-Depth Buyer’s Guide

How to Choose, Specify, and Buy Vibroser Industrial Flooring in the U.S.

Everything a U.S. facility engineer, architect, or procurement officer needs to know about Vibroser acid-proof tile, stainless steel floor systems, hygienic wall protection, drainage, and adhesives — from a vendor who actually installs what they sell.

Why U.S. Industrial Facilities Choose Vibroser

European-engineered since 1986, Vibroser is the parent manufacturer of the full industrial flooring, drainage, wall protection, and adhesive system that WTM USA supplies and installs across the United States. Three reasons U.S. facility engineers specify Vibroser over domestic alternatives:

First, the tiles are thinner and stronger. Vibroser’s vitrified acid-proof tiles are 3-4 mm thick but stronger than typical 9 mm U.S. acid brick, which means lower floor weight load, faster installation, and longer service life (20+ years vs 5-10 for brick).

Second, the system is fully grouted and void-free. Vibroser’s vibratory application technique — a proprietary process using mechanical vibration to seat each tile into a continuous chemical-resistant adhesive bed — produces a monolithic floor with no voids where bacteria, acids, or moisture can collect. USDA-FSIS inspectors specifically look for void-free floors in meat and poultry plants.

Third, the warranty and track record are real. Vibroser has supplied industrial flooring in 50+ countries for 40 years, and WTM USA stands behind every installation with engineering support, maintenance guidance, and direct access to Vibroser’s European technical team for complex specs.

Acid Proof Tiles for U.S. Dairy, Beverage, and Food Plants

Dairy, beverage, and food processing floors take a beating. Lactic acid from milk, phosphoric acid from clean-in-place (CIP) chemicals, hot water at 180°F, thermal shock from steam, and constant forklift traffic all destroy conventional floors in 3-5 years. Vibroser vitrified acid-proof tiles are engineered for this exact use case.

Available in hexagon (most popular for U.S. dairy), interlocking, and rectangular geometries, the tiles are installed with Vibroser’s vibratory technique and grouted with chemical-resistant epoxy or polyurethane grout. The result: a fully void-free, slip-resistant floor that handles continuous acid exposure, daily high-pressure washdowns, and 20+ years of heavy traffic.

WTM USA has specified Vibroser acid-proof tile for U.S. dairy processing plants, cheese factories, beverage bottling lines, breweries, and meat/poultry facilities. The hexagon geometry is the industry standard for process areas because it minimizes grout lines (the weak point in any tile floor) and creates the tightest possible surface. For non-process areas like warehouses or loading docks, rectangular tile is a more cost-effective choice.

Specifying a Vibroser floor for a U.S. food plant typically pays back in 3-5 years through reduced cleaning chemical use, lower maintenance labor, and longer replacement cycles.

Hygienic Wall Protection and Floor-to-Wall Transitions for Pharma and Biotech

Pharmaceutical and biotech cleanrooms (ISO Class 5-8) require a fully sealed hygienic envelope — floor, wall, and ceiling surfaces that are non-porous, non-shedding, and resistant to aggressive disinfectants like vaporized hydrogen peroxide (VHP), bleach, and quaternary ammonium. Vibroser hygienic wall protection systems are the standard for U.S. pharmaceutical and biotech facilities.

The system includes stainless steel skirting (the floor-to-wall transition that prevents bacteria growth in the cove), kerbs (raised edges for wet process areas), corner guards (impact-resistant stainless on outside corners), bollards (door and equipment protection), and wall strips (impact protection on flat wall surfaces). All are 304 stainless steel by default; 316L is available for higher-corrosion environments.

When combined with Vibroser stainless steel floor tiles and chemical-resistant silicone sealants, the result is a fully seam-weldable hygienic envelope that meets USDA, FDA, cGMP, and ISO cleanroom standards. The same system is also specified for U.S. food and beverage processing, hospital operating rooms, and laboratory animal facilities.

For U.S. pharma facility engineers, the key WTM USA advantage is single-source accountability: WTM USA specifies, supplies, and installs the entire hygienic envelope under one warranty, with engineering drawings sealed by a New Jersey P.E.

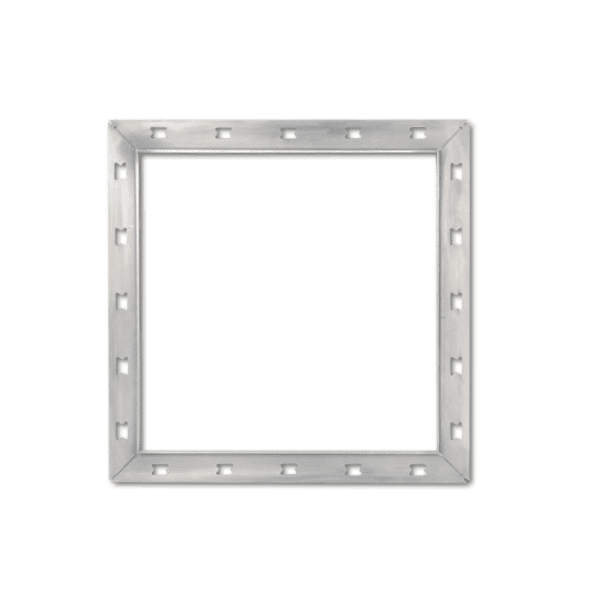

Stainless Steel Floor Tiles for Data Centers and Automotive

Data centers and automotive facilities have very different flooring needs than food plants, but the same Vibroser product line serves both. The 300×300 mm stainless steel floor tile (2.5-4 mm thick, available in anti-slip or flat surface) is the workhorse for both.

For data centers, Vibroser stainless steel tiles provide:

• Static dissipative properties when specified with the conductive adhesive system (essential for server room ESD protection)
• Cable management integration with raised access floor compatibility
• High point-load capacity for server racks (up to 1,500 lbs per square foot in the 4 mm variant)
• Cleanroom-grade finish for dust-sensitive environments

For automotive facilities, the same tiles handle:

• Hydraulic fluid, brake fluid, and battery acid exposure
• Heavy rolling loads from assembly-line carts and forklifts
• Continuous point welding sparks without surface damage
• Anti-slip safety even when wet from coolant spills

WTM USA supplies the full Vibroser stainless steel floor tile range with custom finishes (mirror, brushed, anti-slip pattern) and integration with cable trenches, drainage, and equipment bases.

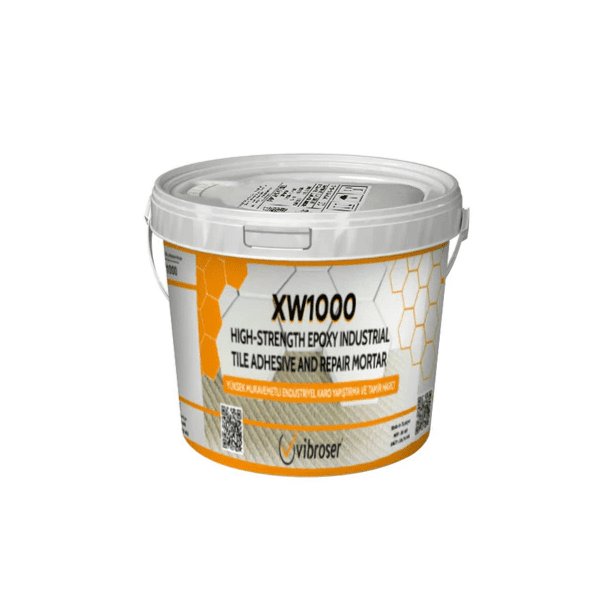

Epoxy Adhesives, Polyurethane Grouts, and Chemical-Resistant Sealants

A Vibroser floor is only as good as the system holding it together. WTM USA supplies the complete Vibroser installation chemistry — every adhesive, grout, and sealant needed for a fully sealed, chemical-resistant floor that lasts 20+ years.

Tile adhesive 20 kg bags — Vibroser’s high-build chemical-resistant bedding adhesive, suitable for both vitrified acid-proof tile and stainless steel tile. Bonds to concrete, steel, and existing tile substrates.

Liquid grout sets — pre-measured two-part epoxy or polyurethane grout kits for joints 2-6 mm wide. Color-matched to your tile; chemical-resistant to the same standard as the tile itself.

Joint filler 5 kg — for construction joints and movement joints, a flexible polyurethane or polysulfide filler that accommodates substrate movement without cracking.

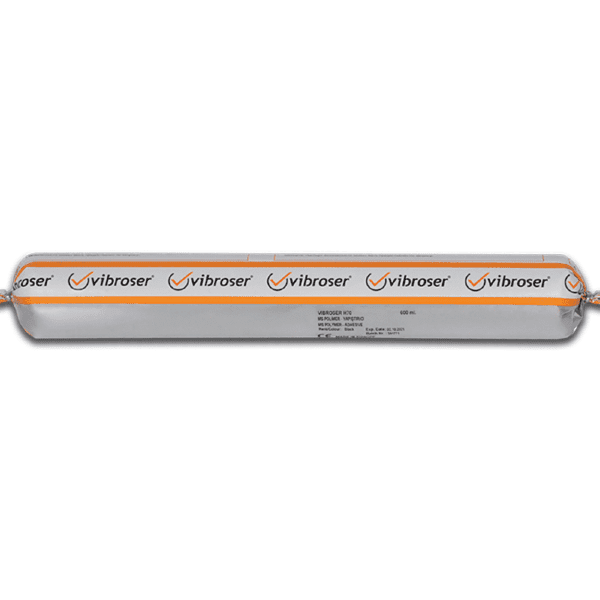

Polymer adhesive 600 ml — S300 neutral-cure silicone for sealing edges, penetrations, and transitions. Food-grade, USDA-approved for incidental contact.

Rapid repair mortar — for emergency patching of damaged tile in operational food plants. Cures in 2-4 hours, fully trafficable in 24 hours, no production shutdown.

WTM USA engineers specify the right adhesive and grout chemistry for your process: phosphoric acid exposure needs different grout than lactic acid; thermal cycling needs different chemistry than constant temperature. Call +1 201-895-2723 for a free specification review.

U.S. Compliance — USDA, FDA, OSHA, cGMP, and FSIS

Vibroser systems installed by WTM USA are designed to meet or exceed every major U.S. regulatory standard for industrial flooring, drainage, and wall protection in food, beverage, pharma, and biotech facilities.

USDA-FSIS (Food Safety and Inspection Service): Vibroser acid-proof tile floors are accepted in federally inspected meat and poultry plants. The vibratory application technique produces the void-free, fully grouted surface that FSIS inspectors specifically look for in slaughter and processing areas.

FDA Food Facility Registration: All Vibroser products installed by WTM USA in U.S. food and beverage facilities are FDA-compliant for direct and indirect food contact, with documentation provided for every shipment.

cGMP (Current Good Manufacturing Practice): Vibroser hygienic wall protection and stainless steel floor systems support 21 CFR Parts 110 and 117 (human food) and Parts 210-211 (pharma) compliance for cGMP manufacturing areas.

OSHA: All Vibroser floor systems meet OSHA slip-resistance standards (coefficient of friction ≥ 0.5 for flat surfaces, ≥ 0.6 for anti-slip patterns). WTM USA provides the test certificates with every installation.

NSF/ANSI 51: Stainless steel food equipment materials comply with NSF/ANSI 51 for food zone contact.

ISO Cleanroom Classifications: Stainless steel tile and wall protection systems are specified for ISO Class 5-8 cleanrooms in pharma and biotech applications.

How to Specify Vibroser Tiles for Your U.S. Facility — A Buyer’s Guide

Specifying industrial flooring for a U.S. facility is a 4-step process that determines whether your floor lasts 5 years or 25. This guide walks U.S. facility engineers, architects, and procurement officers through the decision.

Step 1 — Identify the process environment. Start with a chemical-exposure map: list every acid, alkali, solvent, detergent, and temperature your floor will see. For U.S. food plants, the dominant exposures are lactic acid (dairy), phosphoric acid (CIP chemicals), caustic (cleaners), and 180°F hot water. For U.S. pharma, the exposures include VHP, bleach, quaternary ammonium, and isopropyl alcohol. For U.S. data centers, the exposures are minimal chemical but high static and point load. The chemical map drives your tile selection.

Step 2 — Choose the right tile geometry and material. Vitrified acid-proof tile in hexagon geometry is the standard for U.S. food and beverage process areas. Stainless steel is the standard for U.S. pharma cleanrooms, data centers, and automotive. Epoxy and polyurethane coatings work for light-duty warehouse or back-of-house areas. The right material depends on the chemical map, traffic, and cleanability requirements.

Step 3 — Specify the full system, not just the tile. A Vibroser floor is a system: tile + adhesive + grout + sealant + edge profile + coving. Each component must be chemically compatible with the others and with the substrate. WTM USA engineers provide a complete bill of materials sized to your square footage, with chemical-resistance documentation for every component.

Step 4 — Plan the install schedule around your production calendar. Most U.S. food and beverage plants can’t shut down for a 6-week floor install. WTM USA works with plant operations to phase the install — typically 1,500-3,000 sq ft per phase, with 24-48 hour cure time per phase and full washdown readiness in 7 days. Detailed project schedules with production-impact mitigation are provided during the quote process.

For a free specification review of your facility’s flooring needs, email info@worldtrademanagementusa.com or call +1 201-895-2723. WTM USA responds within 24 hours with a written recommendation.
